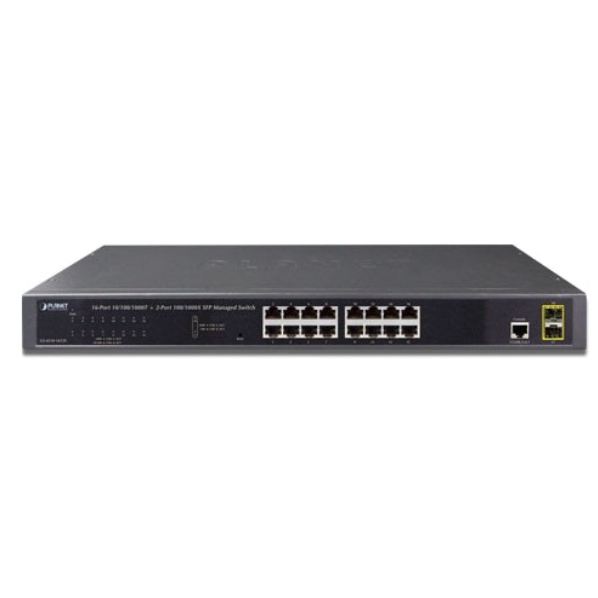

16 port 10/100/1000BASE-T + 2 port 100/1000BASE-X SFP Managed Switch PLANET GS-4210-16T2S
Lượt xem: 389 - Ngày đăng: 04/11/2022
Liên hệ
- 16 cổng RJ45 10/100 / 1000BASE-T + 2 khe cắm 100 / 1000BASE-X SFP.
- Các tính chất của chế độ Store-and-Forward với dây và chuyển tiếp tốc độ.
- Support 8K for MAC address.
- Support 9K cho Jumbo gói.
- Auto-MDI / MDI-X hỗ trợ chức năng.
- Hỗ trợ CSMA / CD giao thức.
- Thiết kế theo chuẩn A: FCC, CE.
Nội dung
Đặc tính kỹ thuật
| Copper Ports | 16 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
|---|---|
| SFP/mini-GBIC Slots | 2 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual mode |
| Console | 1 x RS232-to-RJ45 serial port (115200, 8, N, 1) |
| Reset Button | System factory default |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 36Gbps / non-blocking |
| Switch Throughput @ 64 bytes | 26.7Mpps @64 bytes |
| MAC Address Table | 8K entries |
| Shared Data Buffer | 4.1 megabits |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Jumbo Frame | 9216 bytes |
| Reset Button | > 5 sec: Factory default |
| LED | System: |
| Power (Green) | |
| 10/100/1000T RJ45 Interfaces (Port 1 to Port 16): | |
| 1000 LNK / ACT (Green), 10/100 LNK/ACT (Orange) | |
| 100/1000Mbps SFP Interfaces (Port 17 to Port 18): | |
| 1000 LNK / ACT (Green), 100 LNK/ACT (Orange) | |
| Port Mirroring | TX / RX / Both |
| Many-to-1 monitor | |
| VLAN | 802.1Q tagged-based VLAN |
| Up to 256 VLAN groups, out of 4094 VLAN IDs | |
| 802.1ad Q-in-Q tunneling (VLAN stacking) | |
| Voice VLAN | |
| Protocol VLAN | |
| Private VLAN (Protected port) | |
| GVRP | |
| Management VLAN | |
| Link Aggregation | IEEE 802.3ad LACP and static trunk |
| Supports 8 groups of 8-port trunk | |
| Spanning Tree Protocol | STP, IEEE 802.1D Spanning Tree Protocol |
| RSTP, IEEE 802.1w Rapid Spanning Tree Protocol | |
| MSTP, IEEE 802.1s Multiple Spanning Tree Protocol | |
| STP BPDU Guard, BPDU Filtering and BPDU Forwarding | |
| IGMP Snooping | IPv4 IGMP (v2 / v3) Snooping |
| IGMP Querier | |
| Up to 256 multicast groups | |
| MLD Snooping | IPv6 MLD (v1 / v2) snooping, up to 256 multicast groups |
| Access Control List | IPv4/IPv6 IP-based ACL / MAC-based ACL |
| IPv4/IPv6 IP-based ACE / MAC-based ACE | |
| Secure Management Interfaces | HTTPs, SNMP v3 |
| Power Requirements | 100~240V AC, 50/60Hz, 0.8A (max.) |
| Power Consumption/ Dissipation | Max. 10.4 watts / 35 BTU |
| Dimensions | 445 x 207 x 45 mm (1U height) |
| Weight | 2kg |
