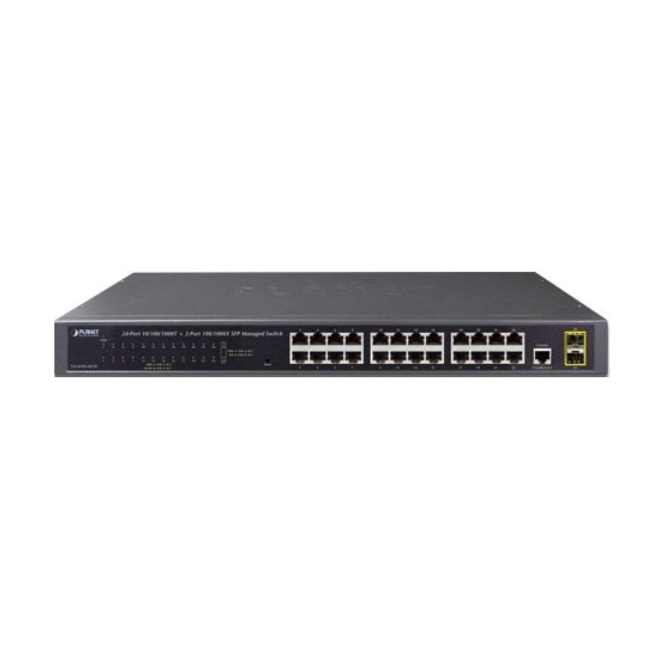

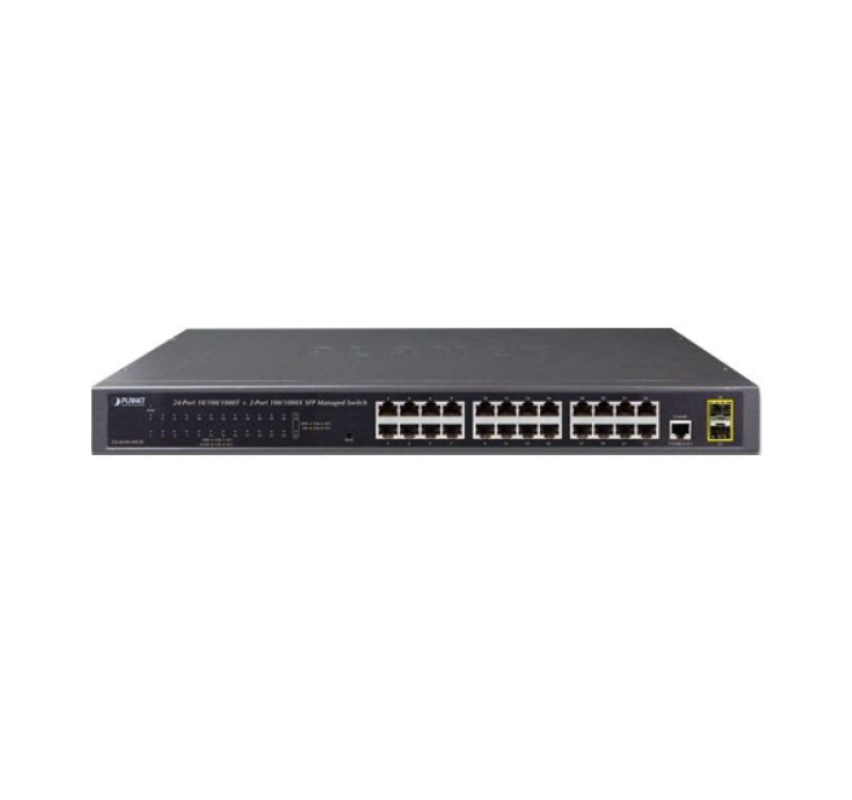

24 port 10/100/1000BASE-T + 2 port 100/1000BASE-X SFP Managed Switch PLANET GS-4210-24T2S
Lượt xem: 176 - Ngày đăng: 04/11/2022
Liên hệ
- 24 cổng RJ45 10/100 / 1000BASE-T + 2 khe cắm 100 / 1000BASE-X mini-GBIC / SFP.
- Chuẩn IEEE 802.3, IEEE 802.3u, IEEE 802.3ab ...
- Các tính chất của chế độ Store-and-Forward với dây và chuyển tiếp tốc độ.
- Support 8K for MAC address.
- Support 9K cho Jumbo gói.
- Auto-MDI / MDI-X hỗ trợ chức năng.
- Hỗ trợ CSMA / CD giao thức.
- Thiết kế theo chuẩn A: FCC, CE.
Nội dung
Đặc tính kỹ thuật
Hardware Specifications |
|
Copper Ports | 24 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
---|---|
SFP/mini-GBIC Slots | 2 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual mode |
Console | 1 x RS232 to RJ45 serial port (115200, 8, N, 1) |
Reset Button | System factory default |
Switch Architecture | Store-and-Forward |
Switch Fabric | 52Gbps / non-blocking |
Switch Throughput @ 64 bytes | 38.6Mpps @ 64 bytes |
MAC Address Table | 8K entries |
Shared Data Buffer | 4.1 megabits |
Flow Control | IEEE 802.3x pause frame for full-duplex |
Back pressure for half-duplex | |
Jumbo Frame | 9216 bytes |
Reset Button | > 5 sec: Factory default |
LED | System: |
Power (Green) | |
10/100/1000T RJ45 Interfaces (Port 1 to Port 24): | |
1000 LNK / ACT (Green), 10/100 LNK/ACT (Orange) | |
100/1000Mbps SFP Interfaces (Port 25 to Port 26): | |
1000 LNK / ACT (Green), 100 LNK/ACT (Orange) | |
Power Requirements | 100~240V AC, 50/60Hz, 0.8A (max.) |
Power Consumption / Dissipation | Max. 14 watts / 47 BTU |
Dimensions | 445 x 207 x 45 mm (1U height) |
Weight | 2.1kg |
ESD Protection | Yes |
Enclosure | Metal |
Port Mirroring | TX / RX / Both |
Many-to-1 monitor | |
VLAN | 802.1Q tagged-based VLAN |
Up to 256 VLAN groups, out of 4094 VLAN IDs | |
802.1ad Q-in-Q tunneling (VLAN stacking) | |
Voice VLAN | |
Protocol VLAN | |
Private VLAN (Protected port) | |
GVRP | |
Management VLAN | |
Link Aggregation | IEEE 802.3ad LACP and static trunk |
Supports 8 groups of 8-port trunk | |
Spanning Tree Protocol | STP, IEEE 802.1D Spanning Tree Protocol |
RSTP, IEEE 802.1w Rapid Spanning Tree Protocol | |
MSTP, IEEE 802.1s Multiple Spanning Tree Protocol | |
STP BPDU Guard, BPDU Filtering and BPDU Forwarding | |
IGMP Snooping | IPv4 IGMP (v2 / v3) Snooping |
IGMP Querier | |
Up to 256 multicast groups |
