Danh mục sản phẩm

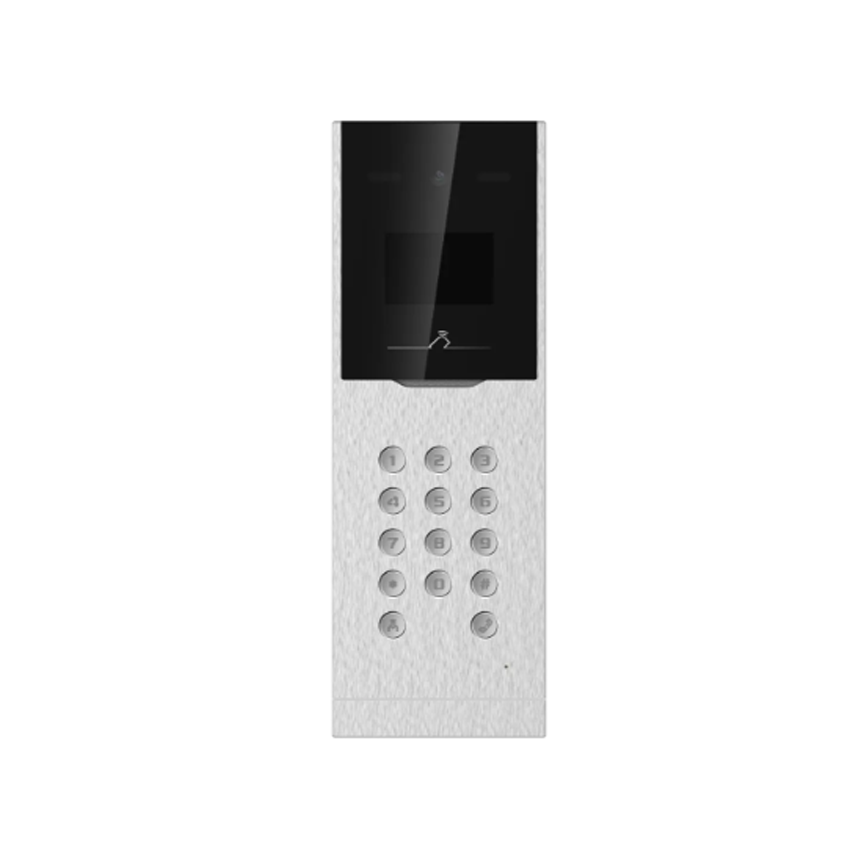

Bảng gọi cho sảnh, 3.5 inch
Lượt xem: 124 - Ngày đăng: 19/07/2023
Liên hệ
- Màn hình LCD đầy màu sắc 3,5 inch với độ phân giải 480 × 320
- Máy ảnh đầy màu sắc 2MP HD với hình ảnh chất lượng cao
- Cấp bảo vệ IP65
- Nhiều giao diện: RJ45, RS-485, đầu vào cảnh báo, rơle, Wiegand
- Cấu hình thuận tiện qua Web từ xa
Nội dung
Thông số kĩ thuật
System Parameters | |
---|---|
Operating System | Linux |
ROM | 4 MB |
RAM | 512 MB |
CPU | Embedded processor |
Display Parameters | |
Screen Size | 3.5-inch |
Operation Method | Display screen, physical buttons |
Type | Colorful LCD |
Resolution | 480 × 320 |
Video Parameters | |
Lens | 2 MP HD camera |
Resolution | Main stream: 1920×1080p ,720p Sub stream: 640×480 |
FOV | Horizontal: 70°, Vertical: 121°, Diagonal: 131° |
WDR | Support |
Supplement Light | Low illumination, IR supplement lights |
Video Compression Standard | H.264 |
Audio Parameters | |
Audio Compression Standard | G.711 U, G.711 A |
Audio Input | Built-in omnidirectional microphone |
Audio Output | Built-in loudspeaker |
Audio Compression Bitrate | 64 Kbps |
Audio Quality | Noise suppression and echo cancellation |
Volume Adjustment | Adjustable |
Capacity | |
Card Capacity | 10000 |
Linked Network Camera Capacity | 500 |
Network Parameters | |
Communication Protocol | TCP/IP, RTSP |
Wired Network | Support |
Authentication | |
Card Type | M1 card |
Device Interfaces | |
Alarm Input | 8 |
Network Interface | 1 RJ-45 10/100/1000 Mbps self-adaptive, RJ45 Analog Interface |
TAMPER | 1 |
Exit Button | 2 |
RS-485 | 1 |
USB | 0 |
Wiegand | 1 |
Alarm Output | 2 |
Lock Control | 2 relays, Max. 30 VDC/2 A |
Door Contact Input | 2 |
Power Interface | 1 |
Performances | |
Multi-Factor Authentication | 10000 |
General | |
Button | 14 physical buttons |
Installation | Flush mounting |
Weight | With package: 1.05 kg Without package: 2.166 kg |
Protective Level | IP65 |
Working Humidity | 10% to 95% (no condensing) |
Dimensions | 418 mm × 145 mm × 59.7 mm (16.46" × 5.71" × 2.35") |
Power Supply | ≤ 10 W |
Application Environment | Outdoor |
