OmniSwitch OS2260-P48
Lượt xem: 505 - Ngày đăng: 03/11/2022
Liên hệ

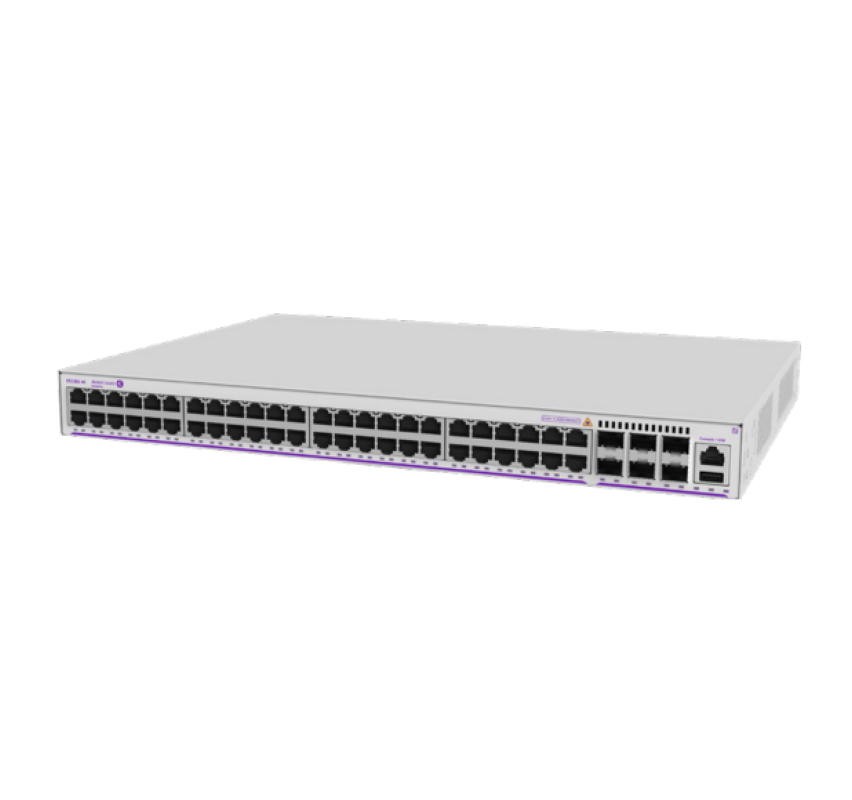

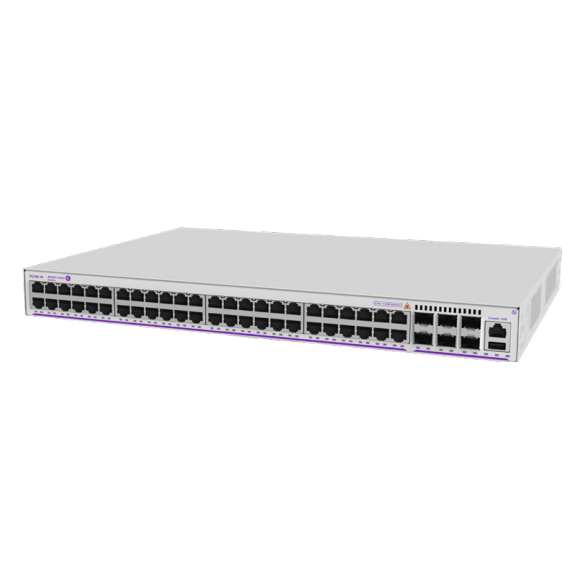

Alcatel-Lucent OmniSwitch OS2260-P48:
- Fixed 1RU chassis
- 48 RJ 45 PoE 10/100/1G BaseT
- 6 SFP (1G) uplink ports
- 370W power budget
Nội dung
| Model | OS2260-P48 |
|---|---|
| Gigabit RJ 45 ports | 48 PoE+ |
| Fixed 1G SFP uplink | 6 |
| Console port | 1 |
| USB/OoB management port | 1 |
| Primary power | Internal |
| Backup power | N/A |
| Fans | 1 |
| CPU | 1 GHz MIPS dual core |
| File system flash | 512 MB |
| RAM | 512 MB |
| Packet Buffers | 12 Mb/s |
Performance aggregated |
|
| Max switching ASIC capacity | 216 Gb/S |
| Switch capacity with all ports (full duplex) | 108 Gb/s |
| Switch frame rate @ 64 byte packet | 80.4 Mpps |
| System power consumption | - Idle : 35.2 W - 100% traffic all ports (max) : 63.2 W |
| System heat dissipation | 216 (BTU/h) |
| Power consumption w/PoE | 453.3W |
| Heat dissipation w/PoE | 1547 (BTU/h) |
| Power supply efficiency (max load) | 0.888 |
| Acoustics (dB) @25C* | <40 db(A) |
| Number of fans | 1 |
| MTBF (hours) @ 25C | 625 k |
| Height | 4.4 cm (1.73 in) |
| Width | 44 cm (17.32 in) |
| Depth | 30 cm (11.81 in) |
| Weight | 4.2 kg (9.3 lbs) |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Storage temperature | -20°C to 60°C (-4°F to 140°F)) |
| Humidity (operating) | 5% to 95% non-condensing |
