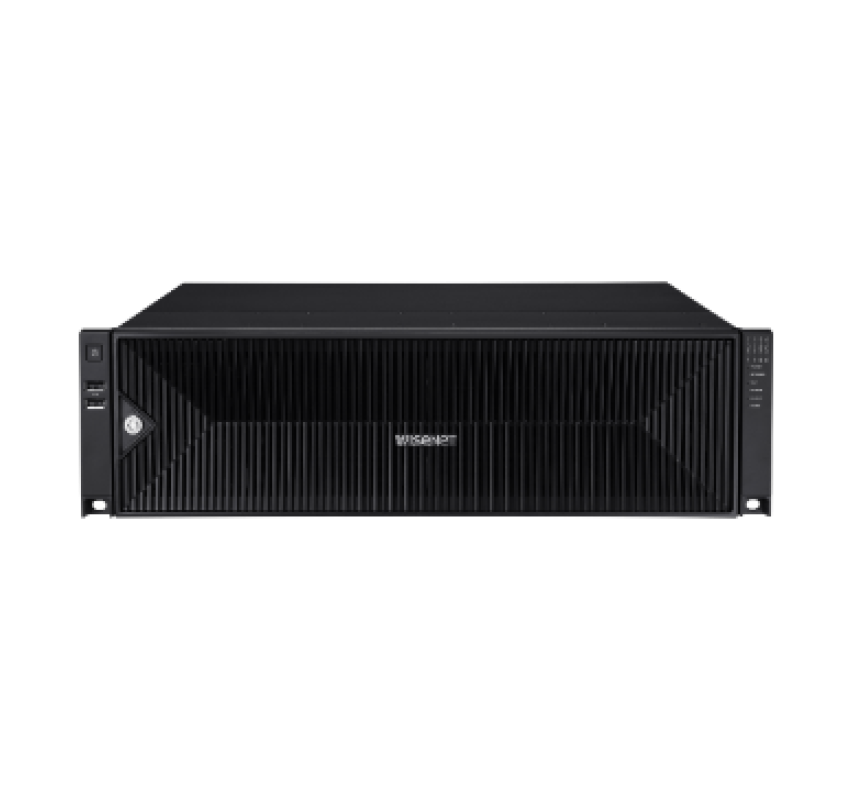

XRP-4310DB4

Lượt xem: 388 - Ngày đăng: 08/10/2022

Giá: Liên hệ

• Intel Core i7-8700T
• SSM Preinstalled
• Up to 32MP Camera supported
• Server Clustering Support - Max. 132CH
• Recording Bandwidth: Max. 400Mbps
• Playback/Search Bandwidth: Max. 150Mbps
• 16 Bay Support – Enterprise HDD
• Hot Swap Support - Volume 2ea
• 2 HDMI port Support
• RAID 1 / 5 / 6 / 10 / 50 Support
• Redundant Power Support
• Windows 10 IoT Enterprise LTSC on M.2 SSD
• AI Event (Face, Appearance, Face mask, Vehicle) Trigger

Đặt mua ngay

0945 322 022 (Hotline) Liên hệ

Nội dung

Thông số sản phẩm

Display
Performance
Network
Functions
Interface
System
Environmental
Electrical
Mechanical

Display
Network camera
	Inputs	Max. 128CH (※ If clustering, 132CH)
	Resolution	32MP ~ CIF
	Protocols	Wisenet, ONVIF
Decoding
	Local Display	Dual if Full HD monitor Single if UHD monitor
	Multi Screen Display	1/4/9/16/25/36/49/64/72/81/100/121/132/Custom/Auto Mode
	Resolution	1920fps@640x360 (128 division) 2160fps@720p (72 division) 1080fps@1080p (36 division)
Performance
Operating System
Operating System	Embedded	Windows 10 IoT Enterprise LTSC (SSM preinstalled)
Record
	Compression	H.265, H.264, MJPEG, WiseStream(H.264, H.265)
	Recording Bandwidth	Max. 400Mbps
	Resolution	32MP ~ CIF
	Mode	Normal, Schedule (Continuous / Event), Event (Pre / Post), Event Profile, ARB, Dual-Track
	Event Trigger	Video loss, Camera event(Sensor, MD, Passing, Entering, Exiting, Disappearing (Appearing), Tampering, Tracking, Face Detection, Audio Detection, ANPR, Bestshot), AI Event (Face, Appearance, Face mask, Vehicle)
	Event Action	Instant Viewer, Preset, Alarm Out, Pop-up, Sound and E-mail notification
Search &Play
	Playback Bandwidth	Max. 150Mbps
	User	Max. 1024 Users (132Ch concurrently)
	Simultaneous playback	Max. 128ch (1080p/720p) ※ if Clustering, 132CH
	Fisheye Dewarping	Console
Storage
	Supported HDD	Up to 10TB
	HDD Slot	SATA 16ea (3.5" 16ea Hot Swap - Volume 2ea) Enterprise HDD (6TB,8TB,10TB)
	RAID	1/5/6/10/50
Backup
	File backup	AVI, SEC
	Function	Manual Backup, Onetime Schedule Backup , Schedule Backup , Privacy Masking Backup
Network
Protocol		IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, SNMP(Client), HTTPS, ONVIF (Profile-S), SUNAPI(Client)
DDNS		Wisenet DDNS
Audio
	Input/Output	128CH(network)
	Compression	G.711 u-law(PCM), G723, G726(ADPCM), AAC
	Audio Communication	2-Way
Max Remote Users		1024 (Tested)
Security		HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log Device Certificate(Hanwha Techwin Root CA)
Viewer Software		SSM Client, SSM Mobile
Functions
Camera Setup
Camera Setup	Item	Automatic device IP scanning, Add profile edit, Resolution, Fisheye dewarping mode, Hallway View Setup, Brightness/Contrast, Viewing the device settings(Device webpage), Exporting/Importing devices settings,, Updating the device firmware
PTZ
	Control	Via GUI, Controller (SPC-2000, SPC-7000)
	Preset	300
Smart phone
	Support Model	iOS, Android
	Protocol Support	RTP, RTSP, HTTP, HTTPS, CGI(SUNAPI)
	Control	Live(Multi-Profile Support), Playback
	Max. Remote Users	Max. 1024 Users (132Ch concurrently)
Redundancy
	Failover	Active &Active, Active-Standby
	ARB	Support

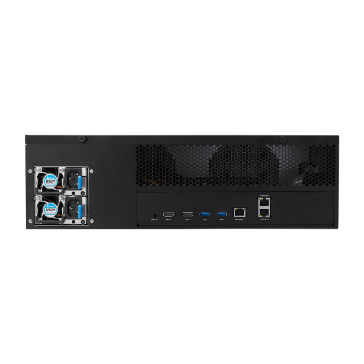

Interface
Front
Front	Indicator	LED(Status Indicator) POWER, NETWORK, HDD, RECORD, BACKUP, ALARM
HDD Key Lock		Yes
HDMI		2EA
Audio		USB
Ethernet		Gigabit Ethernet RJ-45 (1000 Base-T) 3ea
USB		4EA(USB 3.0 2ea, USB 2.0 2EA)
Power inlet		AC 2EA
System
System Control		Mouse, Keyboard
Language		English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
Environmental
CPU		Intel Core i7-8700T
RAM		16GB RAM
OS HDD		M.2 SSD 128Gb
Operating Temperature		+0°C to +40°C(+32℉ to +104℉)
Operating Humidity		Less or equal to 80%
Electrical
Power Input		100 ~ 240VAC, 50 ~ 60Hz
Power Consumption		285W Dual
Mechanical
Color / Material		Black / Metal
Dimension (WxHxD)		440.0 x 132.0 x 548.1mm (Including Cover: 571.1mm)
Weight		14.05kg (w/o HDD)

• The latest product information / specification can be found at hanwha-security.com
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
