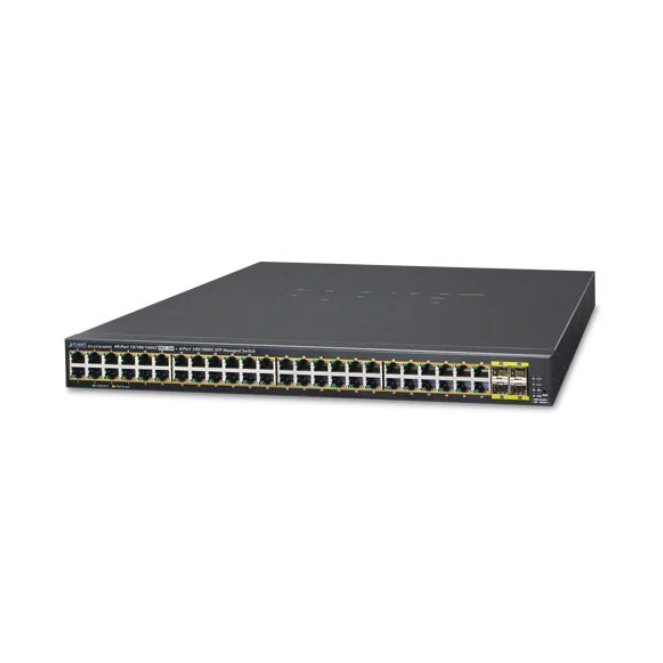

PLANET IPv6/IPv4, 48-Port Managed 802.3at POE+ + 4-Port Gigabit SFP Gigabit
Lượt xem: 139 - Ngày đăng: 04/11/2022
Liên hệ
PLANET GS-4210-48P4S là Thiết bị chuyển mạch Ethernet Gigabit được quản lý mật độ cao, được tối ưu hóa về chi phí, có các chức năng PoE thông minh của PLANET để cải thiện tính khả dụng của các ứng dụng kinh doanh quan trọng. Nó cung cấp quản lý ngăn xếp kép IPv6 / IPv4 và công cụ chuyển mạch Gigabit L2 / L4 tích hợp cùng với 48 cổng 10/100 / 1000BASE-T có 36 watt 802.3at PoE + và 4 khe cắm Gigabit SFP bổ sung. Với tổng ngân sách nguồn lên đến 600 watt cho các loại ứng dụng PoE khác nhau, nó cung cấp giải pháp mạng Power over Ethernet nhanh chóng, an toàn và tiết kiệm chi phí cho các doanh nghiệp và doanh nghiệp nhỏ.
Nội dung
| Hardware Specifications | |
|---|---|
| Hardware Version | 3 |
| Copper Ports | 48 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port |
| SFP/mini-GBIC Slots | 4 x 100/1000BASE-X SFP interface Supports 100/1000Mbps dual mode and DDM |
| PoE Injector Port | 48 ports with 802.3at/af PoE injector function |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| LED | System: PWR (Power) (Green) SYS (System) (Green) 10/100/1000T RJ45 Interfaces (Port 1 to Port 48): 10/100/1000Mbps, LNK/ACT (Green) PoE-in-Use (Amber) 100/1000Mbps SFP Interfaces (Port 49 to Port 52): 1000Mbps, LNK/ACT (Green) 100Mbps, LNK/ACT (Green) |
| Power Requirements | 100~240V AC, 50/60Hz, auto-sensing |
| Dimensions (W x D x H) | 440 x 300 x 44.5 mm, 1U height |
| ESD Protection | 6KV DC |
| Enclosure | Metal |
| Weight | 4872g |
| Power Consumption | 663 watts (max.)/2262 BTU |
| Fan | 4 x fan |
| Switch Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 104Gbps, non-blocking |
| Switch Throughput@64Bytes | 77.38Mpps |
| Address Table | 16K entries |
| Shared Data Buffer | 12 megabits |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Jumbo Frame | 10K bytes |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af/802.3at PoE+ PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per port 53V DC, 36 watts (max.) |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 600 watts (max.) @ 25 degrees C 500 watts (max.) @ 50 degrees C |
| PoE Ability PD @ 9 watts | 48 units |
| PoE Ability PD @ 15 watts | 40 units |
| PoE Ability PD @ 30 watts | 20 units |
| Layer 2 Functions | |
| Port Mirroring | TX/RX / both Many-to-1 monitor Up to 4 sessions |
| VLAN | 802.1Q tag-based VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs 802.1ad Q-in-Q tunneling Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP |
| Link Aggregation | IEEE 802.3ad LACP and static trunk |
| Spanning Tree Protocol | STP, IEEE 802.1D Spanning Tree Protocol RSTP, IEEE 802.1w Rapid Spanning Tree Protocol MSTP, IEEE 802.1s Multiple Spanning Tree Protocol STP BPDU Guard, BPDU filtering and BPDU forwarding |
| IGMP Snooping | IGMP (v2/v3) snooping IGMP querier Up to 256 multicast groups |
| MLD Snooping | MLD (v1/v2) snooping, up to 256 multicast groups |
| QoS | 8 mapping IDs to 8 level priority queues Port number 802.1p priority 802.1Q VLAN tag DSCP field in IP packet Traffic classification based, strict priority and WRR |
| Ring | Supports ERPS, and complies with ITU-T G.8032 |
| Security Functions | |
| Access Control List | IPv4/IPv6 IP-based ACL/MAC-based ACL |
| Port Security | IEEE 802.1X – Port-based authentication Built-in RADIUS client to co-operate with RADIUS server RADIUS/TACACS+ user access authentication |
| MAC Security | IP-MAC port binding MAC filter Static MAC address |
| Enhanced Security | DHCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard |
| Management Functions | |
| Basic Management Interfaces | Web browser/Telnet/SNMP v1, v2c |
| Secure Management Interfaces | SSHv2, TLS v1.2, SNMP v3 |
| System Management | Firmware upgrade by HTTP/TFTP protocol through Ethernet network LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS System/CloudViewer |
| Event Management | Remote/Local Syslog System log |
| SNMP MIBs | RFC 1213 MIB-II RFC 1215 Generic Traps RFC 1493 Bridge MIB RFC 2674 Bridge MIB Extensions RFC 2737 Entity MIB (Version 2) RFC 2819 RMON (1, 2, 3, 9) RFC 2863 Interface Group MIB RFC 3635 Ethernet-like MIB RFC 3621 Power Ethernet MIB |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE, LVD |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree protocol IEEE 802.1w Rapid Spanning Tree protocol IEEE 802.1s Multiple Spanning Tree protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 RFC 3810 MLD version 2 ITU G.8032 ERPS Ring |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
