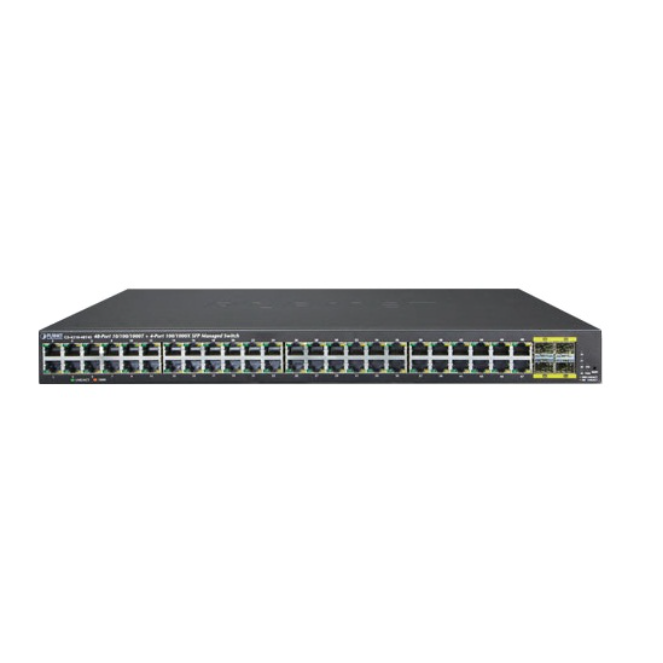

48 Port 10/100/1000BASE-T + 4 Port 100/1000BASE-X SFP Managed Gigabit Switch PLANET GS-4210-48T4S
Lượt xem: 225 - Ngày đăng: 04/11/2022
- 48 cổng RJ45 10/100 / 1000BASE-T + 4 khe cắm 100 / 1000BASE-X mini-GBIC / SFP.
- Chuẩn IEEE 802.3, IEEE 802.3u, IEEE 802.3ab ...
- Các tính chất của chế độ Store-and-Forward với dây và chuyển tiếp tốc độ.
- Support 16K cho MAC address.
- Support 10K cho Jumbo gói.
- Auto-MDI / MDI-X hỗ trợ chức năng.
- Hỗ trợ CSMA / CD giao thức.
- Thiết kế theo chuẩn A: FCC, CE.
Nội dung
Hardware Specifications |
|
|
Copper Ports |
48 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
|---|---|
|
SFP/mini-GBIC Slots |
4 100/1000BASE-X SFP interfaces, |
|
Supports 100/1000Mbps dual mode and DDM |
|
|
Switch Architecture |
Store-and-Forward |
|
Switch Fabric |
104Gbps / non-blocking |
|
Switch Throughput @ 64bytes |
77.38Mpps @ 64bytes |
|
Address Table |
16K entries |
|
Shared Data Buffer |
12Mbit SRAM packet buffer |
|
Flow Control |
IEEE 802.3x pause frame for full-duplex |
|
Back pressure for half-duplex |
|
|
Jumbo Frame |
10K bytes |
|
Reset Button |
< 5 sec: System reboot |
|
> 5 sec: Factory default |
|
|
LED |
System: |
|
PWR(Power) (Green) |
|
|
SYS(System) (Green) |
|
|
10/100/1000T RJ45 Interfaces (Port 1 to Port 48): |
|
|
1000Mbps (Orange), LNK/ACT (Green) |
|
|
10/100Mbps (None), LNK/ACT (Green) |
|
|
100/1000Mbps SFP Interfaces (Port 49 to Port 52): |
|
|
1000Mbps, LNK/ACT (Green) |
|
|
100Mbps, LNK/ACT (Orange) |
|
|
Thermal Fan |
Fanless design |
Layer 2 Functions |
|
|
Port Mirroring |
TX / RX / Both |
|
Many-to-1 monitor |
|
|
VLAN |
802.1Q tagged-based VLAN |
|
Up to 256 VLAN groups, out of 4094 VLAN IDs |
|
|
802.1ad Q-in-Q tunneling (VLAN stacking) |
|
|
Voice VLAN |
|
|
Protocol VLAN |
|
|
Private VLAN (Protected port) |
|
|
GVRP |
|
|
Management VLAN |
|
|
Link Aggregation |
IEEE 802.3ad LACP and static trunk |
|
Supports 8 trunk groups with each having 8 ports |
|
|
Spanning Tree Protocol |
STP, IEEE 802.1D Spanning Tree Protocol |
|
RSTP, IEEE 802.1w Rapid Spanning Tree Protocol |
|
|
MSTP, IEEE 802.1s Multiple Spanning Tree Protocol |
|
|
STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
|
|
IGMP Snooping |
IGMP (v2/v3) snooping |
|
IGMP querier |
|
|
Up to 256 multicast groups |
|
|
MLD Snooping |
IPv6 MLD (v1 / v2) snooping, up to 256 multicast groups |
|
Access Control List |
IPv4/IPv6 IP-based ACL / MAC-based ACL |
|
IPv4/IPv6 IP-based ACE / MAC-based ACE |
|
|
Secure Management Interfaces |
SSH, SSL, SNMPv3 |
