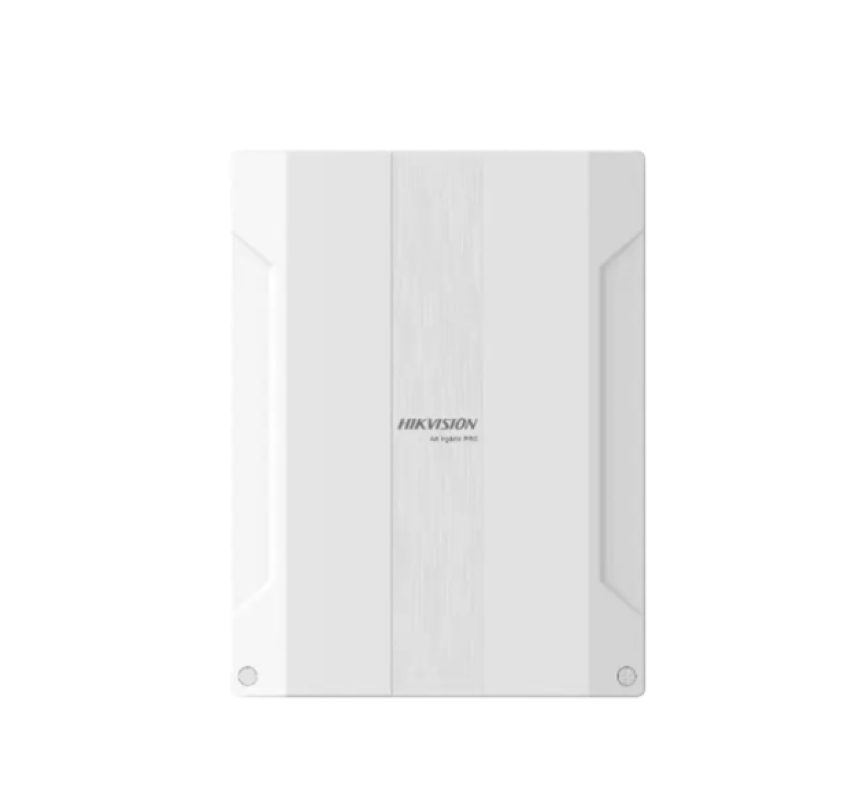

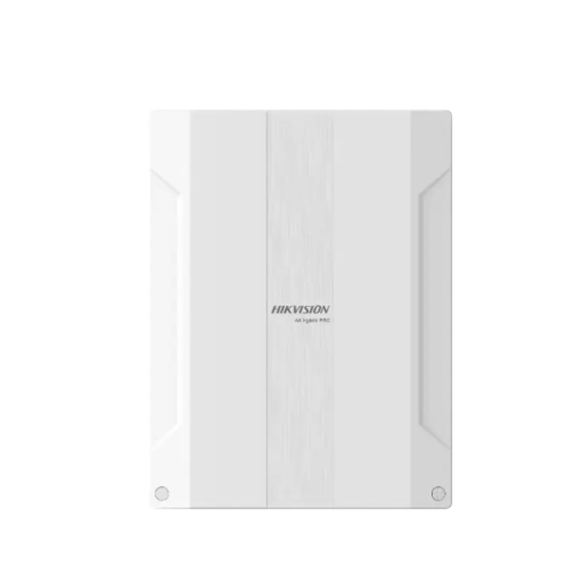

AX HYBRID PRO
Lượt xem: 164 - Ngày đăng: 18/07/2023
- Hệ thống trung tâm: 8 vùng hợp nhất và 40 vùng có dây/không dây có thể mở rộng; 4 đầu ra trên mạch (2 đầu ra rơ le và 2 đầu ra I/O) và 44 đầu ra có dây/không dây có thể mở rộng.
- Giao tiếp đường dẫn kép của các sự kiện báo động và các tín hiệu khác qua mạng LAN, PSTN, GPRS hoặc 3G/4G sử dụng kênh chính và kênh dự kiến với mức độ ưu tiên ban đầu có thể cấu hình.
- Xác minh IP video camera tích hợp 2 kênh, hỗ trợ quay video (5 giây trước báo động + 2 giây sau báo động hoặc 2 giây trước báo động + 5 giây sau báo động) để xác minh với email nhận cảnh báo hoặc ứng dụng khách di động.
- Hỗ trợ kích hoạt / vô hiệu hóa thông qua bàn phím, keyfob, ứng dụng khách di động, iVMS-4200, SMS và thẻ
- Đẩy cảnh báo qua tin nhắn và Hik-Connect.
- Hỗ trợ giao thức ISAPI, Cloud P2P, ISUP, CSV-IP và DC-09.
- Hỗ trợ 1 BUS Speed-X.
Nội dung
Software features | |
---|---|
Zones | 64 (8 On-board zones, max 8 wired PIRCAM) |
Area | 32 |
User | Installer: 1 Administrator: 1 Operator: 62 |
SMS notification | Support (with GPRS/3G/4G module) |
Onboard video clips | 4 |
ARC protocol | ISAPI: Supports iVMS-4200 client software and web client Cloud P2P: Supports cloud P2P privacy protocol DC-09: ARC accessible(ADM-CID/SIA-DCS ) CSV-IP: Supports CSV-IP ISUP: Supports ISUP 5.0 |
Programming tools | Web/iVMS-4200/Hik-ProConnect/Keypad |
Firmware upgrade | Web/iVMS-4200/Hik-ProConnect/Hik-ProConnect |
End of Line Resistance | Support 1K, 2.2K, 4.7K, 5.6K, 6.8K, 8.2K |
Hardware features | |
Alarm input | 64 (Including 8 on-board zones) |
Alarm output | 64 (Including 2 on-board relay outputs and 2 on-board I/O outputs) |
Power Output | 1. Bell: maximum 12V 1.2A 2. AUX: maximum 12V 1.5A 3. Bell and AUX maximum 12V 2.1A |
3/4G on board | Optional |
GPRS on board | Optional |
Wi-Fi | 802.11b/g/n (2.4GHz) |
Bus | 1 Speed-X bus |
Sounder output | 1 Wired on-board sounder output |
Tamper-Proof | 1 switch to detect removal from mounting 1 switch to detect front cover open |
Netowrk interface | 1 RJ45 10M/100M Ethernet interface |
Electrical characteristics | |
Power interface | 100 to 240 VAC (on-board power transformer) |
Power Consumption | 1. 220V power supply ① With an alarm: 2A, 32W ② Without an alarm: 250mA, 4W 2. 13.5V battery supply ① With an alarm: 1.7A, 25W ② Without an alarm: 200mA, 2.7W |
Battery type | Lead acid battery (12V 7Ah, battery is not included by default) |
Battery life span | Up to 36hrs |
Display | |
Indicator | 4 On-board LEDs: ① 1 AC power LED indicator (Green) ② 1 System status LED indicator (Green/Red) ③ 1 PSTN status LED indicator (Green/Red) ④ 1 Mobile communication status LED indicator (Green/Red) |
General | |
Operation temperature | -10°C to 40°C |
Operation humidity | 10% to 90% |
Shell material | Plastic |
Color | White |
Dimension(WxHxD) | 261 mm × 199 mm × 86.4 mm |
Weight | 997 g |
Device management | |
Tag | 64 |
Keyfob | 64 |
Keypad | 8 |
Wireless sounder | 16 |
