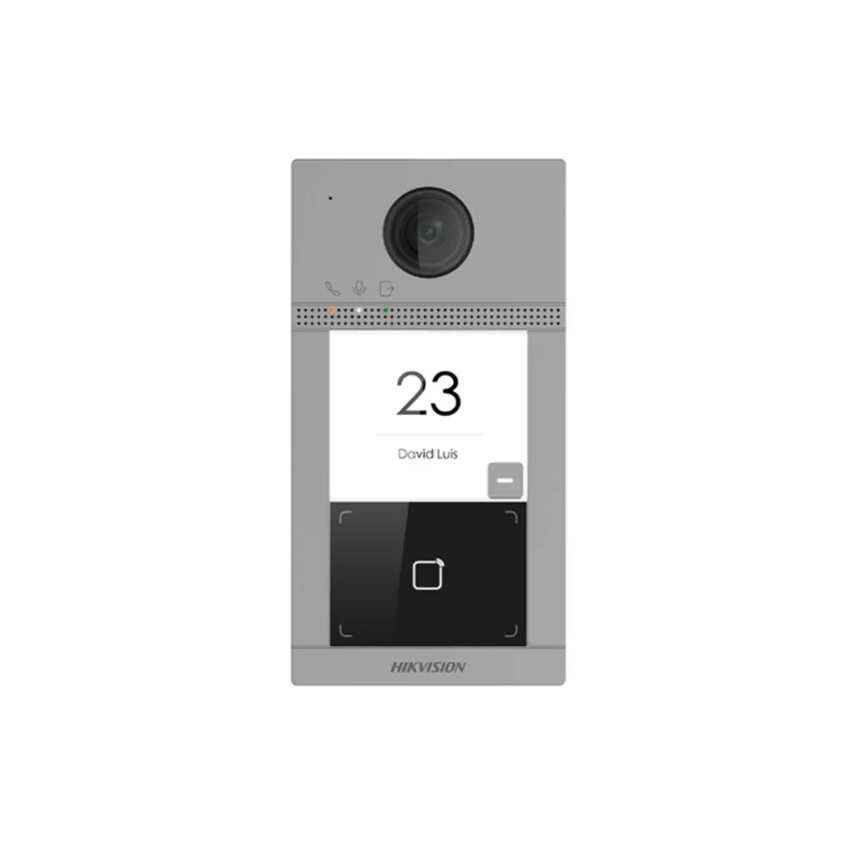

Bảng gọi cho Villa 1 nút nhấn
Lượt xem: 201 - Ngày đăng: 19/07/2023
Liên hệ
- Camera 2 MP có bổ sung IR
- Thiết kế nút gọi một nút tên để gọi dễ dàng hơn
- Cấp nguồn PoE tiêu chuẩn
- Cấp độ bảo vệ cao hơn IK08 & IP65 với vật liệu hợp kim nhôm
Nội dung
Thông số kĩ thuật
System Parameters | |
---|---|
Operating System | Embedded Linux operation system |
ROM | 32 MB |
RAM | 256 MB |
CPU | Embedded MCU Processor |
Display Parameters | |
Screen Size | / |
Operation Method | / |
Type | / |
Resolution | / |
Video Parameters | |
Lens | 1 |
Resolution | Main stream: 1920 × 1080 Sub stream: 640 × 480 |
FOV | Horizontal: 124° Vertical: 75° |
WDR | Support |
Supplement Light | IR supplement |
Video Compression Standard | H.264 |
Audio Parameters | |
Audio Compression Standard | G.711 U, G.711 A |
Audio Input | Built-in omnidirectional microphone |
Audio Output | Built-in loudspeaker (more than 80 dB within 30 cm) |
Audio Compression Bitrate | 64 Kbps |
Audio Quality | Noise suppression and echo cancellation |
Volume Adjustment | Adjustable |
Capacity | |
User Capacity | 2000 |
Card Capacity | 10000 |
Linked Indoor Station Capacity | 1(main indoor station) |
Sub Door Station Capacity | 16 |
Network Parameters | |
Communication Protocol | TCP/IP, RTSP |
Wired Network | 10/100 Mbps self-adaptive Ethernet |
Wi-Fi Standard | Wi-Fi 802.11 b/g/n |
Bluetooth Version | / |
3G/4G Standard | / |
Received Frequency | 2.4 to 2.4835GHz |
Transmitted Frequency | 2.4 to 2.4835 GHz |
Bandwidth | 20/40 MHz |
Frequency Power | 802.11b:15 dBm +/- 1.5 dBm 802.11g:15 dBm +/- 1.5 dBm 802.11n(ht20):14 dBm +/- 1.5 dBm 802.11n(ht40):12 dBm +/- 1.5 dBm |
Authentication | |
Card Reading Frequency | 13.56 MHz |
Device Interfaces | |
Alarm Input | 4 |
Network Interface | 1 |
TAMPER | 1 |
Exit Button | 2 Max. |
RS-485 | 1 |
USB | 0 |
Wiegand | 0 |
TF Card | 1(Reserved) |
Alarm Output | 0 |
Lock Control | 2 |
Door Contact Input | 2 |
Power Interface | 1 |
General | |
Button | 1 |
Installation | Surface mounting |
Indicator | 3 |
Weight | 380g |
Protective Level | IP65, IK08 |
Working Temperature | -40° C to 53° C (-40° F to 127.4° F) |
Working Humidity | 10% to 95% |
Dimensions | 174 mm × 91 mm × 29 mm |
Battery | / |
Application Environment | Outdoor |
Power Supply | < 10 W |
Language | English, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak |
