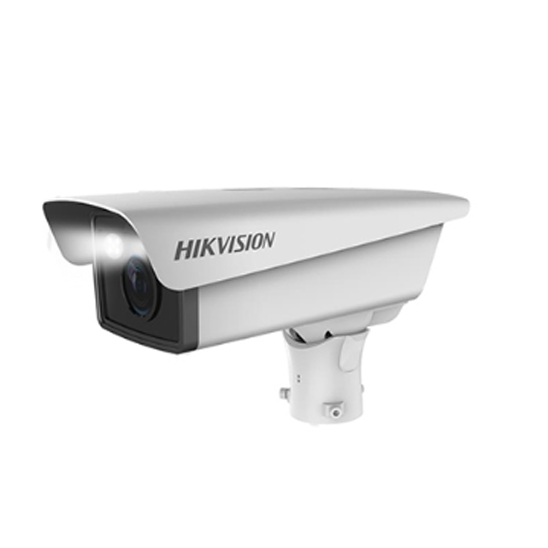

Camera nhận dạng biển sốANPR Camera 4MP.
Lượt xem: 51 - Ngày đăng: 28/07/2023
Liên hệ
- Dòng máy ảnh DS-TCG405, dựa trên học sâu, bao gồm lớp bảo vệ nắp, ống kính, máy ảnh, đèn LED và nguồn điện, cung cấp độ nét cao
- Progressive Scan CMOS, và tích hợp các thuật toán nhận dạng thông minh cho các ứng dụng cụ thể như quản lý lối vào, an toàn đường bộ thực thi, giám sát trong xe, kiểm soát bãi đậu xe, v.v.
Nội dung
Thông số kĩ thuật
Camera | |
---|---|
Sensor Type | 1/3" Progressive Scan CMOS |
Max. Resolution | 2688*1520 |
Min. Illumination | Color: 0.022Lux@(F1.2, AGC ON) B/W: 0.011Lux@(F1.2, AGC ON) |
Shutter | 1/30 s to 1/100,000 s |
Day/Night Switch | Support |
Lens | |
Lens Type | 3.1 mm to 6 mm |
Image | |
Image Settings | Saturation: 0 to 100 Brightness: 0 to 100 Contrast: 0 to 100 Gain: 0 to 100 3D DNR: Off, Normal and Expert modes are selectable. White balance: White Balance 1 and White Balance 2 are selectable. |
Video | |
Video Bit Rate | 32 Kbps to 16 Mbps |
Network | |
Protocol | TCP/IP, HTTP, DHCP, DNS, RTP, RTSP, NTP, FTP Upload Pictures |
Interface | |
Audio | 1-ch audio output |
Communication Mode | 1 RJ45 10M/100M Ethernet port |
RS-485 | 1 RS-485 Port |
General | |
Working Temperature & Humidity | -25°C to 70°C (-13°F to 158°F) 90% or less (non-condensing) |
Power Supply | 12 VDC, PoE (802.3af) or AC100V~240V |
Working Consumption | 22W Max |
Approval | |
Security | User Authentication, Heartbeat, NTP |
Smart Function | |
Vehicle Type Recognition | Car (including SUV, MPV, Pickup)/truck/bus/van |
