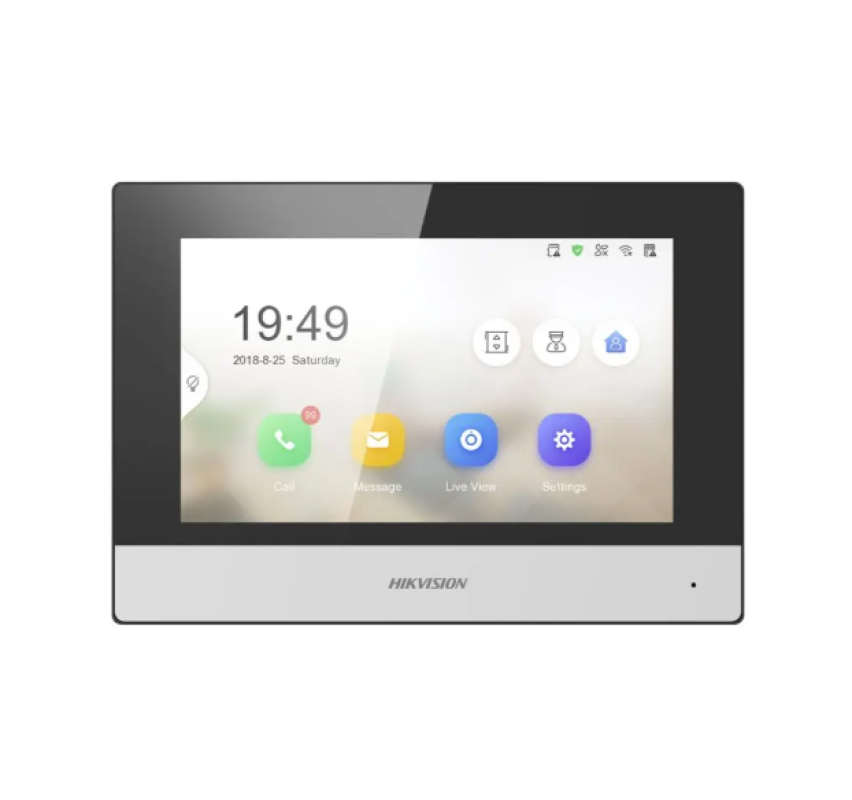

Màn hình căn hộ IP sê-ri KH6
Lượt xem: 198 - Ngày đăng: 19/07/2023
Liên hệ
- Màn hình cảm ứng IPS 7 inch độ phân giải 1024 × 600
- Ứng dụng Hik-Connect APP Điều khiển di động tiện lợi
- Nhận cuộc gọi, mở cửa và xem trực tiếp từ xa
- Dễ dàng sử dụng mà không cần PC
- Trình hướng dẫn dễ dàng để thiết lập nhanh
- Cấu hình toàn bộ hệ thống trên một màn hình cảm ứng
- Chế độ xem trực tiếp trạm cửa và camera ở các khu vực công cộng
- Hỗ trợ tin nhắn thoại khi không có phản hồi từ trạm trong nhà
- Nhận báo động bằng cách liên kết với hệ thống báo động và báo về trung tâm để xử lý kịp thời
Nội dung
Thông số kĩ thuật
System Parameters | |
---|---|
Operating System | Embedded Linux operation system |
ROM | 32 MB |
RAM | 128 MB |
CPU | Embedded processor |
Display Parameters | |
Screen Size | 7-inch colorful TFT screen |
Operation Method | Capacitive touch screen |
Type | Colorful TFT screen |
Resolution | 1024 × 600 |
Video Parameters | |
Lens | / |
Resolution | / |
FOV | / |
WDR | / |
Video Compression Standard | DS-KH6320-WTE1 |
Focal Length | / |
Audio Parameters | |
Audio Compression Standard | G.711 U |
Audio Input | Built-in omnidirectional microphone |
Audio Output | Built-in loudspeaker |
Audio Compression Bitrate | 64 Kbps |
Audio Quality | Noise suppression and echo cancellation |
Volume Adjustment | Adjustable |
Capacity | |
Event Capacity | 200 |
Notice Capacity | 16 |
Linked Indoor Extensions Capacity | 5 |
Linked Doorphone Capacity | 8 |
Network Parameters | |
Communication Protocol | TCP/IP, SIP, RTSP |
Wired Network | 10/100 Mbps self-adaptive |
Wi-Fi Standard | Wi-Fi 802.11 b/g/n |
Bluetooth Version | / |
3G/4G Standard | / |
Zigbee | / |
Device Interfaces | |
Alarm Input | 8-ch alarm inputs |
Network Interface | 1 RJ-45 10/100 Mbps self-adaptive |
TAMPER | / |
RS-485 | 1 |
USB | / |
TF Card | Max to 128 G, SD 2.0 or lower version |
Alarm Output | 2 |
Power Interface | 1 |
General | |
Button | 0 |
Installation | Surface mounting |
Indicator | 0 |
Weight | With package: 683 g Without package: 355 g |
Protective Level | / |
Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
Working Humidity | 10% to 90% |
Dimensions | 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6") |
Battery | / |
Application Environment | Indoor |
Power Consumption | ≤ 6 W |
Language | English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Portuguese, Slovak |
