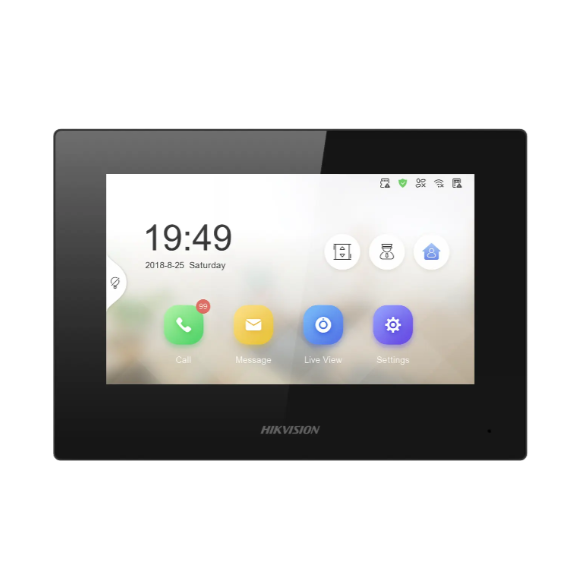

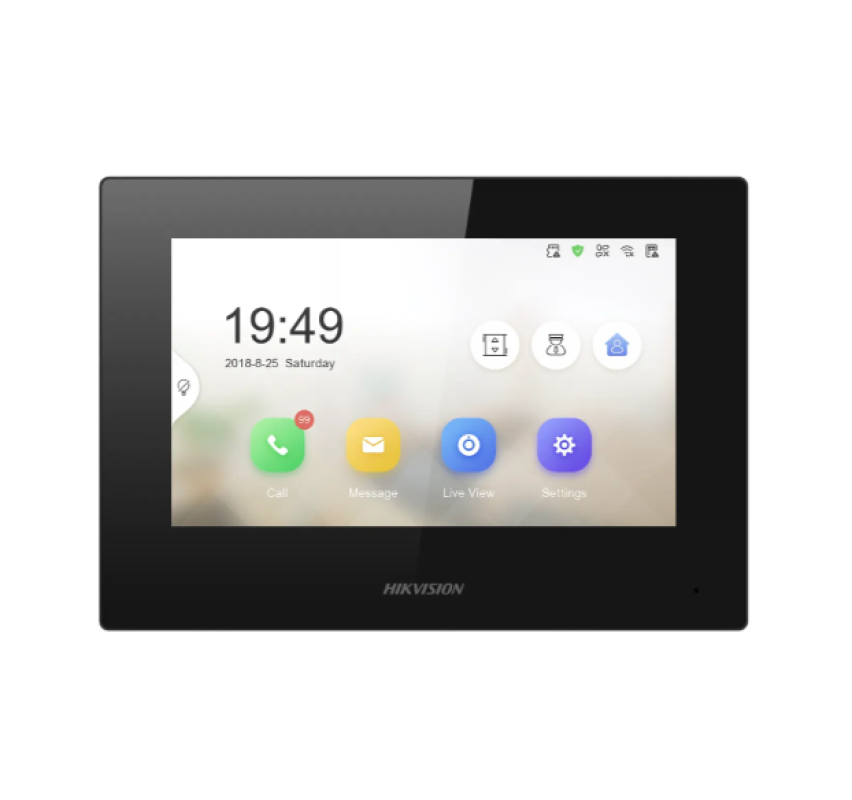

Màn hình căn hộ IP cảm ứng 7 inch
Lượt xem: 162 - Ngày đăng: 19/07/2023
Liên hệ
- Màn hình cảm ứng TFT 7 inch độ phân giải 1024×600
- Cắm và chạy
- Cấp nguồn PoE tiêu chuẩn
- Chế độ xem trực tiếp trạm cửa và camera ở các khu vực công cộng
- Hỗ trợ nhiều ngôn ngữ
Nội dung
Thông số kĩ thuật
System Parameters | |
---|---|
Operating System | Embedded RTOS operation system |
ROM | 16 MB |
RAM | 64 MB |
CPU | Embedded processor |
Display Parameters | |
Screen Size | 7-inch |
Operation Method | Capacitive touch |
Type | TFT LCD |
Resolution | 1024 × 600 |
Video Parameters | |
Lens | / |
Resolution | / |
FOV | / |
WDR | / |
Video Compression Standard | / |
Focal Length | / |
Audio Parameters | |
Audio Compression Standard | G.711 U |
Audio Input | Built-in omnidirectional microphone |
Audio Output | Built-in loudspeaker |
Audio Compression Bitrate | 64 Kbps |
Audio Quality | Noise suppression and echo cancellation |
Volume Adjustment | Adjustable |
Capacity | |
Event Capacity | 200 |
Notice Capacity | 16 |
Linked Indoor Station Capacity | 5 |
Linked Indoor Extensions Capacity | 8 |
Network Parameters | |
Communication Protocol | TCP/IP, RTSP |
Wired Network | Support |
Wi-Fi Standard | / |
Bluetooth Version | / |
3G/4G Standard | / |
Zigbee | / |
Device Interfaces | |
Alarm Input | 8 |
Network Interface | 1 RJ-45 10/100 Mbps self-adaptive |
TAMPER | / |
RS-485 | / |
USB | / |
TF Card | / |
Alarm Output | / |
Power Interface | 1 |
General | |
Button | / |
Installation | Flush mounting, surface mounting |
Indicator | / |
Weight | With package: 683 g Without package: 355 g |
Protective Level | / |
Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
Working Humidity | 10% to 90% |
Dimensions | 200 mm × 140 mm × 15.1 mm (7.87" ×5.51" × 0.59") |
Battery | / |
Power Supply |
IEEE802.3af, standard PoE 12 VDC, 1 A |
Application Environment | Indoor |
Power Consumption | < 6 W |
Language | English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Czech, Ukrainian, Serbian |
