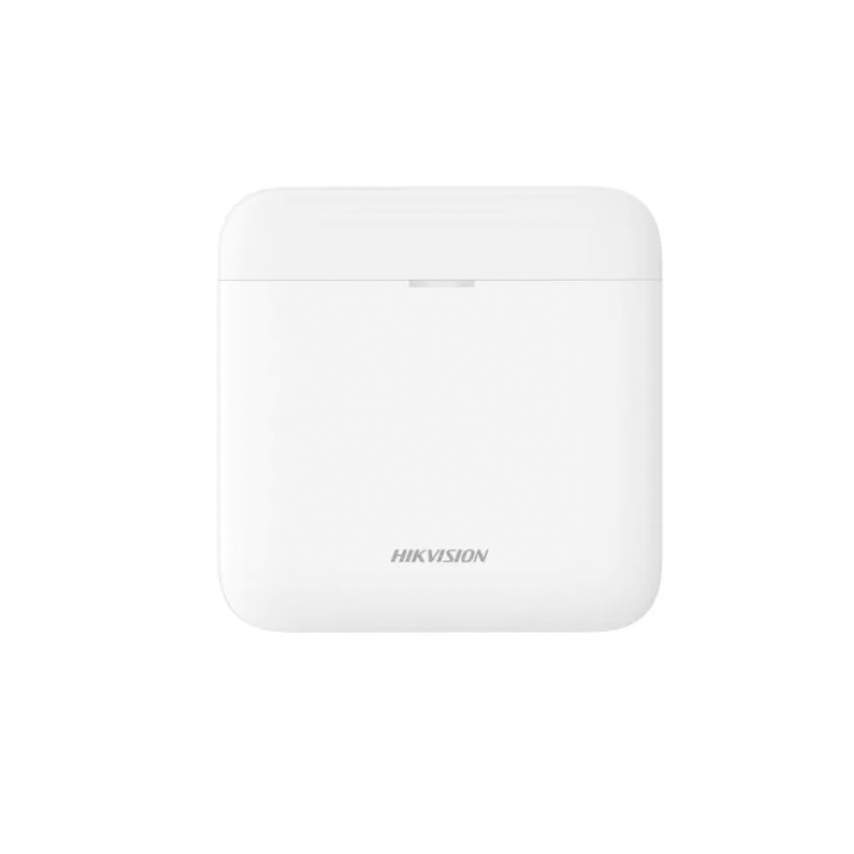

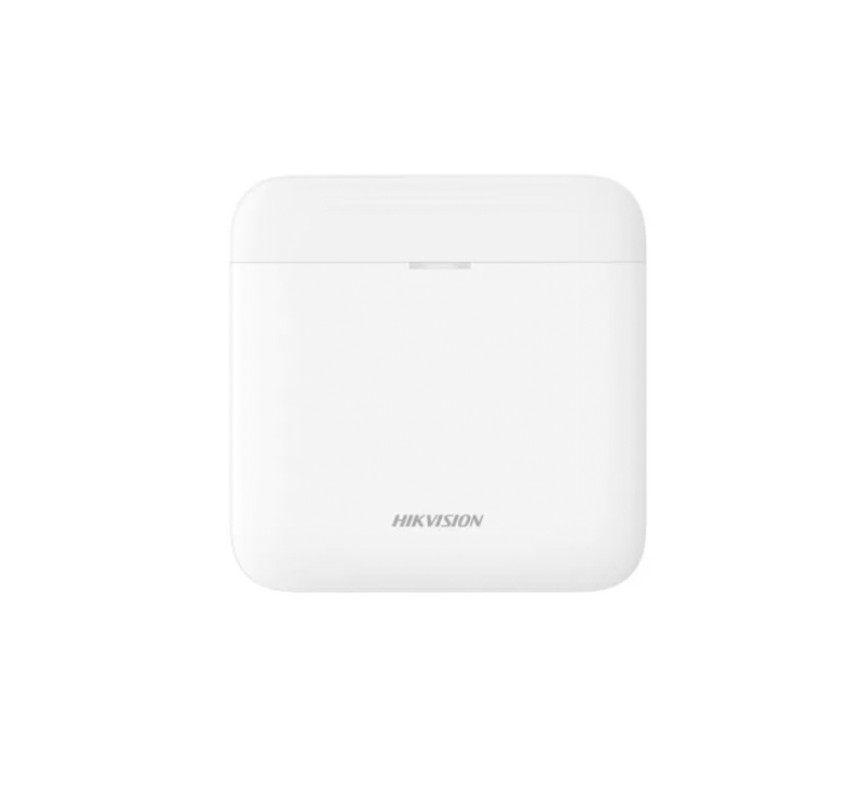

AX PRO (868MHz)
Lượt xem: 51 - Ngày đăng: 19/07/2023
- Mạng TCP/IP, Wi-Fi và GPRS
- Giao thức không dây thế hệ mới: Tri-X/Cam-X
- Khoảng cách truyền RF dài
- Giao tiếp hai chiều với mã hóa AES-128
- Kết nối tới 64 vùng/đầu ra không dây (bao gồm 48 PIRCAM), 32 keyfobs không dây, 2 bộ lặp, 4 âm thanh, 8 đầu đọc thẻ và bàn phím.
- Hỗ trợ tối đa 32 người dùng mạng, bao gồm 1 người cài đặt, 1 quản trị viên và 30 người dùng bình thường
- Lời nhắc bằng giọng nói
- Cấu hình thông qua Web client, mobile client và Convergence Cloud
- Cấu hình Hik-Connect và Hik-ProConnect phụ thuộc vào cấp độ truy cập của người dùng
- Đẩy thông báo báo động qua tin nhắn hoặc cuộc gọi điện thoại
- Xem video trực tiếp từ Hik-Connect
- Các video clip cảnh báo qua email và APP
- Hỗ trợ đèn LED báo trạng thái hệ thống
- Pin sạc dự phòng lithium 4520 mAh
- Giao thức SIA-DC09 và hỗ trợ cả định dạng dữ liệu SIA và ID liên hệ
- Hỗ trợ Bộ thu Hik-IP và Bộ thu Hik-IP Pro cho giao tiếp ARC
Nội dung
Software features | |
---|---|
Diagnostics via the APP or Web | Supported |
Installer | 1 |
Installer APP for programming | Supported |
Web server for maintenance (offline configuration) | Supported |
Wi-Fi standard | Supported |
Arm modes | Away/Stay |
Firmware upgrade | APP/Web Portal |
Admin | 1 |
Wired network | Supported |
Programming tools | Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud |
Forced arming with open zones | Supported |
Memory log stored | 5000 |
User | 30 |
User APP for operating | Supported |
Voice prompt | Supported |
Area | 16 |
Automatic arm/disarm timers | Supported |
Hardware features | |
RS232 output | Supported |
SIM slot | Single |
GPRS on board | Supported |
Loudspeaker built in | Supported |
Electrical characteristics | |
Battery type | Built in on board Battery Li |
Power supply | Built in power supply |
Operation temperature | -10 °C to +55 °C (The battery can not be charged at temperature lower than 10°C, please make sure the adapter is connected) |
Battery life span | Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures) |
Wireless transmission | |
RF frequency | 868 Mhz |
Wireless security | Frequency hoping 128 AES encryption |
Display | |
LEDs status | Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power |
General | |
Dimension(WxHxD) | 170.0 mm (6.7") × 170.0 (6.7") mm × 38.6 mm (1.5") |
Shell material | Plastic |
Color | White |
Weight | 557.5 g (19.7 oz) |
Device management | |
Tag | 32 |
PIR cam | Supported |
Zones | 64 (up to 48 PIRCAMs) |
Keypad | 8 (including tag reader) |
Wireless sounder | 4 |
Wireless repeater | 2 |
Keyfob | 32 |
Report method | |
ARC protocol | SIA DC09 (SIA level 2, Contact ID), ISUP, ISAPI (SDK) Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685) Supports video verification and remote control |
